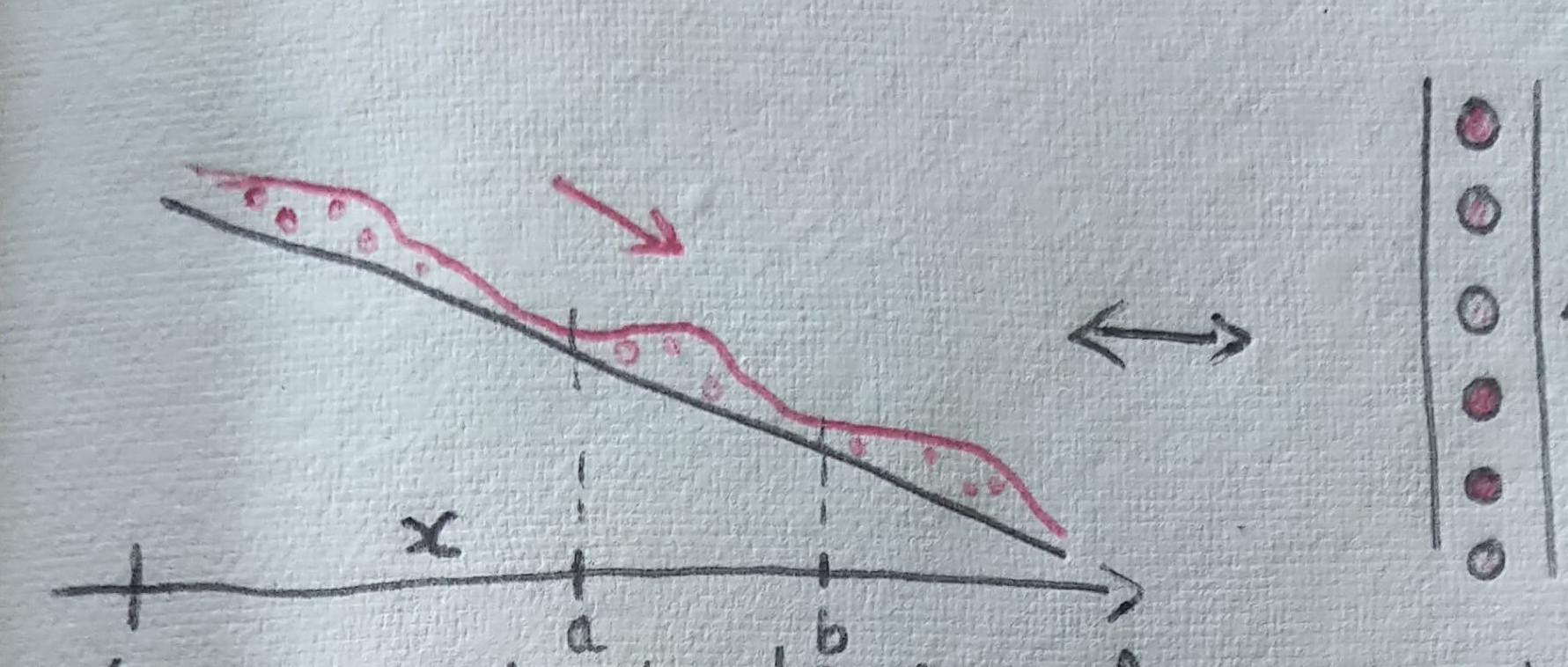

The main idea of this project is to represent a flow of lava descending a constant slope on a programmable LED strip. This comes from an idea for the scenography of a music festival (Les ilots éléctroniques). In this project, you will find:

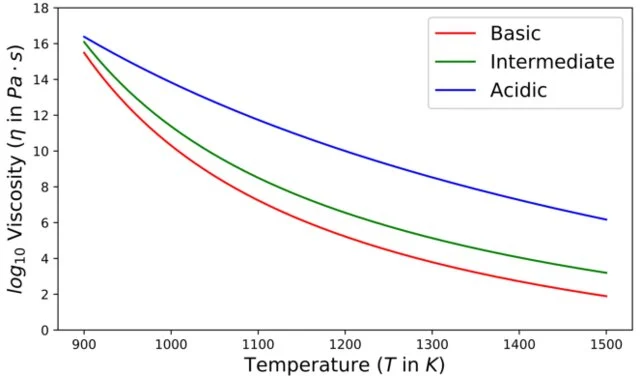

Some concepts are not completely explained... I apologize for that. However, I think there is some kind of beauty in the technicity of this page. I also need to mention that the mathematical models described here are not scientifically relevant. The idea here is to produce a basic model for a light show. The model must be sufficiently simple so that the code can run on an arduino. If you're interested in accurate modeling of lava flows using partial differential equations, I found a few papers about it online (see [BMDP23]), most of them deal with the shallow water equations which is sort of a more complicated version of the scalar conservation law presented here.

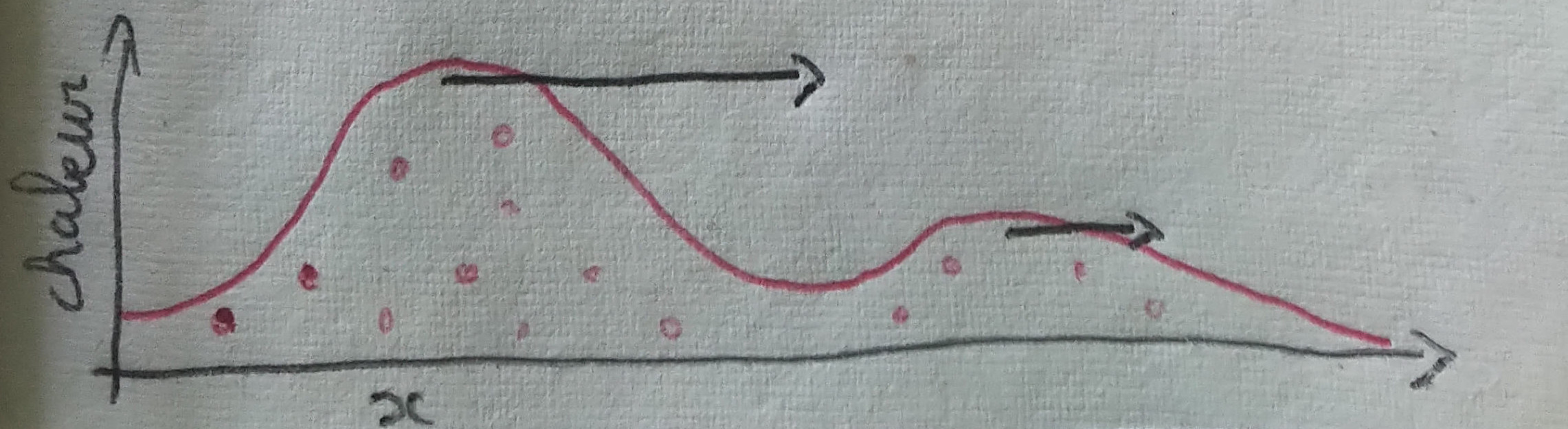

Numerical scheme for the Burgers equation

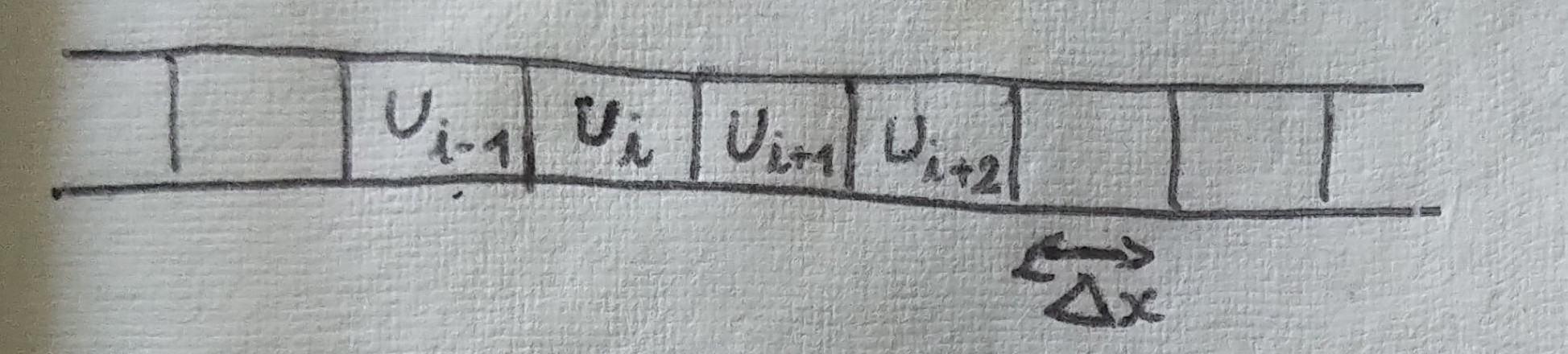

The standard numerical scheme for such equations is called finite volume scheme. It exactly corresponds to a discretized version of the integral analysis we did above. More precisely, we denote \(u^n_i\) a discretized version of \(u \) where \(i\) is the index of the space discretization with step of size \( \Delta x \) and \(n\) is the index of the time discretization with step of size \(\Delta t\).

import random as alea

NUM_POINTS = 50
liste_values =  [0 for _ in range(NUM_POINTS)]
in_value = 0.5
counter = 0

#Function corresponding to the numerical scheme with a boundary value
def propagate():
    for i in range(len(liste_values)-1):
        liste_values[-i-1] += 0.5*((liste_values[-i-2])**2 - (liste_values[-i-1])**2)
    liste_values[0] += 0.5*((in_value)**2 - (liste_values[-i-1])**2)

#Main loop that computes 100 iterations of the scheme
while counter <= 100:
		if counter % 10 == 0:
				counter = alea.random()
		propagate()
		counter += 1

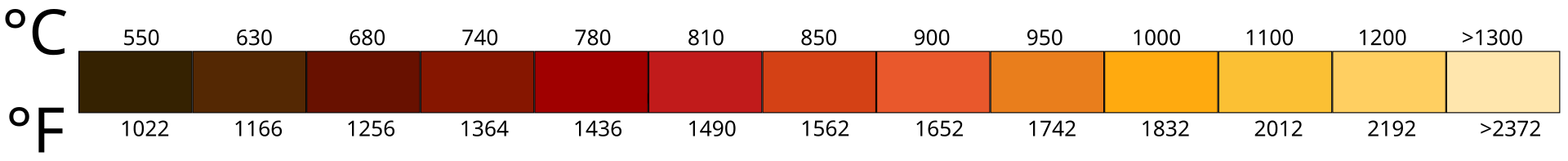

Numerical experiment with the colormaps

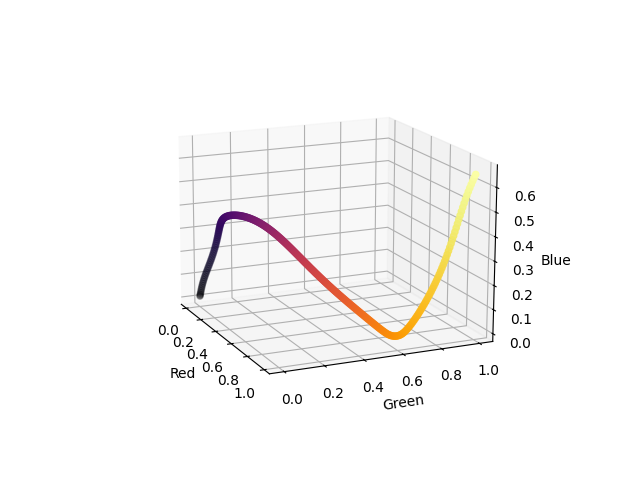

We want to implement the whole model on an arduino board using C language. This poses an issue as the matplotlib library only exist in Python. Therefore, we reproduce the behaviour of the colormaps in matplotlib in order to port the code in C in a second time. It is interesting to note that the cm (colormap) module of matplotlib in multiple different ways. The "perceptually uniform sequential" colormaps are colormaps design for giving the most accurate reading by the human perception also taking into account color-blind perception. For this kind of colormaps, the implementation of matplotlib simply give a fixed list of 256 colors as RGB values. The colormap object then select the color corresponding to a value between \( [0,1] \). Here is a visualization of the inferno colormap in the RGB cube.

On the contrary, most of the colormaps of matplotlib (including 'hot') are defined using a linear interpolation. The principle is simple, matplotlib defines a small number of control points in the color space and a function to interpolate between the control points. Below we reproduce the code corresponding to the 'hot' colormap.

_hot_data = {'red':   ((0., 0.0416, 0.0416),
                       (0.365079, 1.000000, 1.000000),
                       (1.0, 1.0, 1.0)),
             'green': ((0., 0., 0.),
                       (0.365079, 0.000000, 0.000000),
                       (0.746032, 1.000000, 1.000000),
                       (1.0, 1.0, 1.0)),
             'blue':  ((0., 0., 0.),
                       (0.746032, 0.000000, 0.000000),
                       (1.0, 1.0, 1.0))}

#A simple implementation of a linear interpolation
def mapp(a,x1,x2,y1,y2):
    return y1 + (y2-y1)*(a-x1)/(x2-x1)

#A function mapping a number between 0 and 1 to a RGB 8-bit triplet
def generate_hot_map(a):
    value = [0,0,0]
    for color, key in enumerate(['red','green','blue']):
        i = 1
        while not (a <= _hot_data[key][i][0] and a >= _hot_data[key][i-1][0]):
            i +=1
        value[color] = int(255.0*mapp(a,
                                   _hot_data[key][i-1][0],
                                   _hot_data[key][i][0],
                                   _hot_data[key][i-1][1],
                                   _hot_data[key][i][1]))
    return value

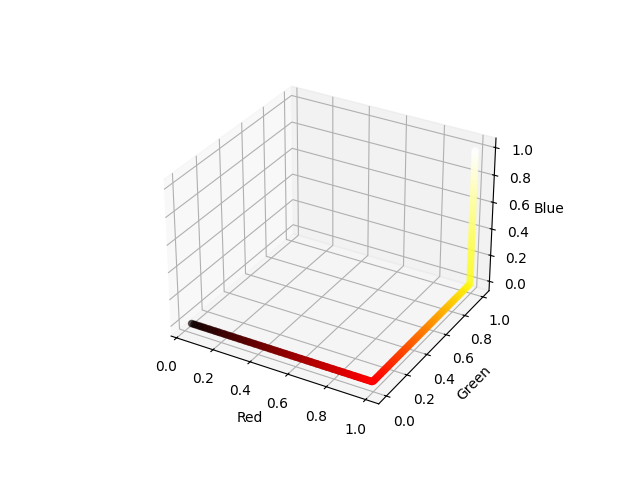

Here is a visualization of the hot colormap in the RGB cube.

Eventually, we give the following implementation in C.

//Slightly modified colorscale data in order to fit the LED behavior.
float hot_data[3][4][2] = {{{0.0, 0.0},
                           {0.365079, 1.000000},
                           {1.0, 1.0}},
                          {{0.0, 0.0},
                           {0.365079, 0.000000},
                           {0.746032, 0.85},
                           {1.0, 0.95}},
                          {{0., 0.},
                           {0.746032, 0.000000},
                           {1.0, 0.95}}};

float mapp(float a,float x1,float x2,float y1,float y2){
    return y1 + (y2-y1)*(a-x1)/(x2-x1);
}

int hot_map_value(float a, int key){
    int i = 1;
    while(a > hot_data[key][i][0] || a < hot_data[key][i-1][0]){
        i +=1;
    }
    return (int)(255.0*mapp(a,
                               hot_data[key][i-1][0],
                               hot_data[key][i][0],
                               hot_data[key][i-1][1],
                               hot_data[key][i][1]));
}

All the codes concerning the colormap tests are also available here.
